Magnetic Grates

Features:
1.304 or 316L stainless steel are available for pipeline material which have a good corrosion resisting
property without and less pollution.
2.Standard magnetic grates are assembled with stainless steel frame and magnetic bars with
a length of 25 mm diameter.
3.The surface of the frame and magnetic bar can be fine polished and meet the standard of
food or pharmacy industry.
4.Standard working temperature≤80℃, and maximum working temperature can reach 350℃ as
required.
Applications:
Magnetic Grate is for removing Ferrum contamination from store holders, drawers and hoppers.
These grates are designed for low-abrasion materials

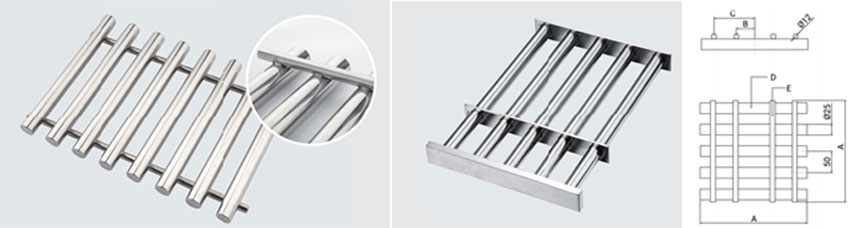

Specification. A(mm) B(mm) C(mm) D.(pcs) E(pcs)
SN150 150 31 3 2
SN200 200 56 4 2
SN250 250 81 5 2
SN300 300 106 6 2
SN350 350 131 7 2
SN400 400 156 8 2
SN450 450 66 181 9 4
SN500 500 71 206 10 4
SN550 550 81 231 11 4
SN600 600 86 256 12 4

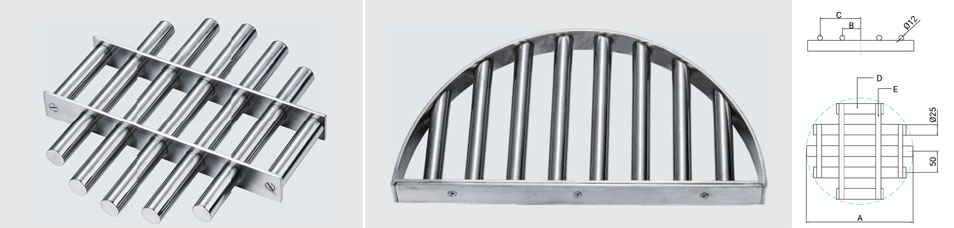

Specification. A(mm) B(mm) C(mm) D.(pes) E(pes)
RN150 147 23 3 2
RN200 184 60 4 2
RN250 247 36 5 2
RN300 289 41 6 2
RN350 347 46 7 2
RN400 391 50 8 4
RN450 447 55 178 9 4
RN500 494 58 192 10 4
RN550 547 62 205 11 4
RN600 594 65 217 12 4
